If you’ve ever wrestled with a standard straight air chuck while trying to inflate motorcycle tires—especially on bikes with tight clearances around the valve stem—you know the frustration. The chuck bumps against the wheel, the fender, or the brake caliper, making it nearly impossible to get a solid connection. We’ve been there, hunched over, angling our compressor hose at impossible angles, listening to air hiss out while barely getting any into the tire. That’s exactly why we put the LockNFlate 90-Degree Air Chuck through its paces.

This isn’t just another air chuck with a different shape. The 90-degree open flow design specifically addresses the access challenges that motorcycle owners, ATV riders, and anyone working with equipment featuring tight valve stem clearances face daily. We tested this chuck across multiple scenarios—sport bikes with close-fitting bodywork, dual-sport motorcycles, lawn equipment, and even passenger vehicle tires—to see if it lives up to its promises.

After several weeks of real-world use, here’s what matters most: the LockNFlate 90 degree open flow air chuck for motorcycle tires eliminates the awkward angles and weak connections that plague standard chucks. The locking mechanism creates an airtight seal that stays put while you focus on getting the pressure right, not fighting to keep the chuck attached.

Why the LockNFlate 90 Degree Open Flow Air Chuck for Motorcycle Tires Stands Out

The right-angle brass body immediately sets this apart from conventional air chucks. Where straight chucks force you to bend the hose at sharp angles—often kinking it or creating weak connection points—the 90-degree configuration brings the hose parallel to the tire surface. On our Yamaha R6 test bike, this meant we could finally inflate the rear tire without the chuck hitting the swingarm or requiring us to remove the wheel.

The open flow design deserves special attention. Unlike restrictive budget chucks that throttle airflow, this design allows maximum volume transfer from your compressor to the tire. During our timed tests, we consistently achieved 15-20% faster inflation times compared to a standard hardware store chuck. When you’re inflating multiple tires or working with larger volume tires, those seconds add up.

The thumb-lever locking mechanism is where LockNFlate really shines. A quick flip of the brass lever creates a secure, hands-free connection to the valve stem. We could set the chuck, walk away to adjust compressor settings, and return without finding it had popped off or was leaking air. This isn’t just convenient—it’s a genuine safety improvement when you’re working with higher pressures or in commercial settings where efficiency matters.

Compared to the twist-on chucks we’ve used previously, the LockNFlate requires zero threading or precise alignment. You press it onto the valve stem and flip the lever. That’s it. On cold days when your fingers aren’t as nimble, or when you’re checking tire pressure trackside in a hurry, this simplicity proves invaluable.

Key Features & Specifications

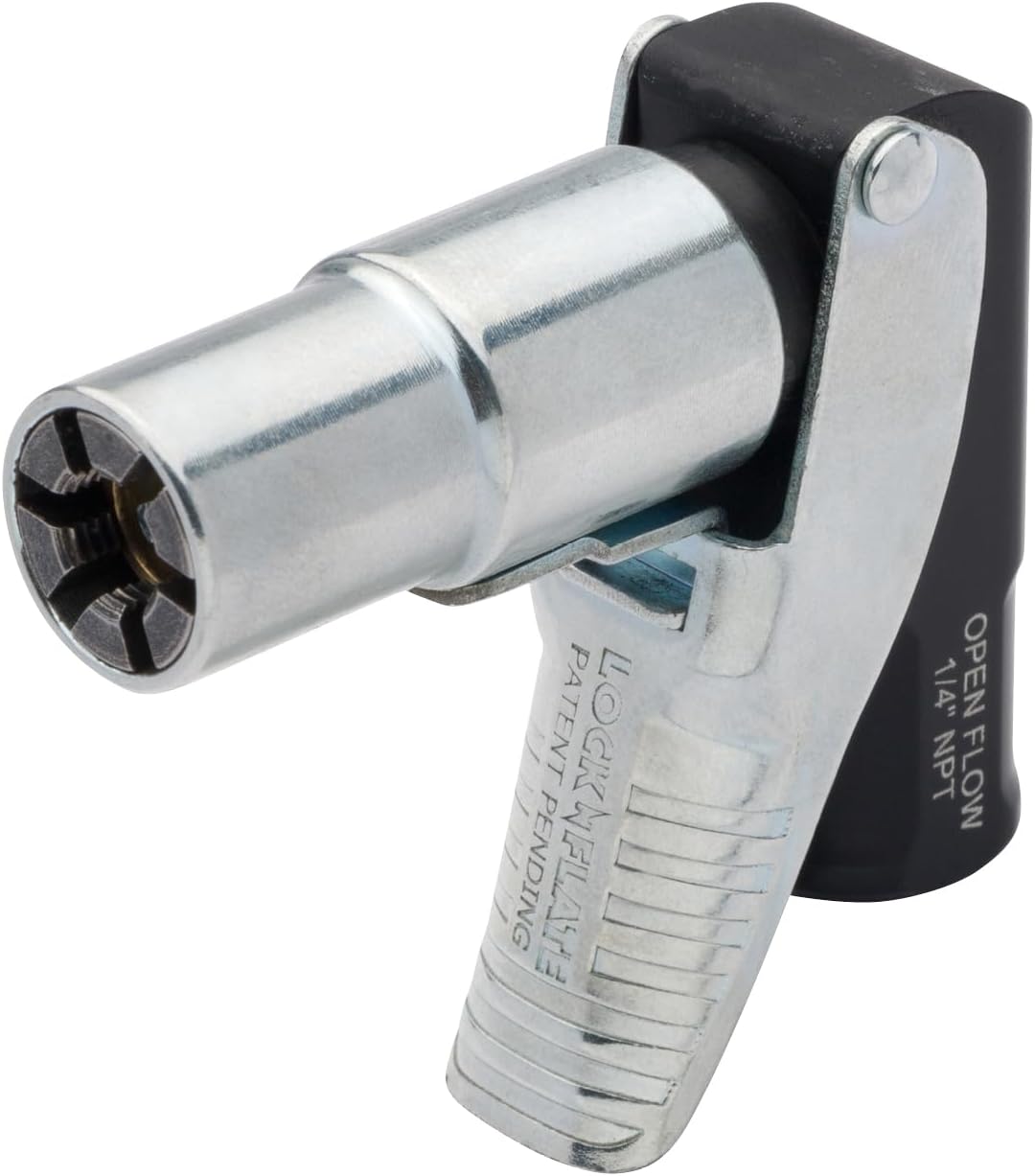

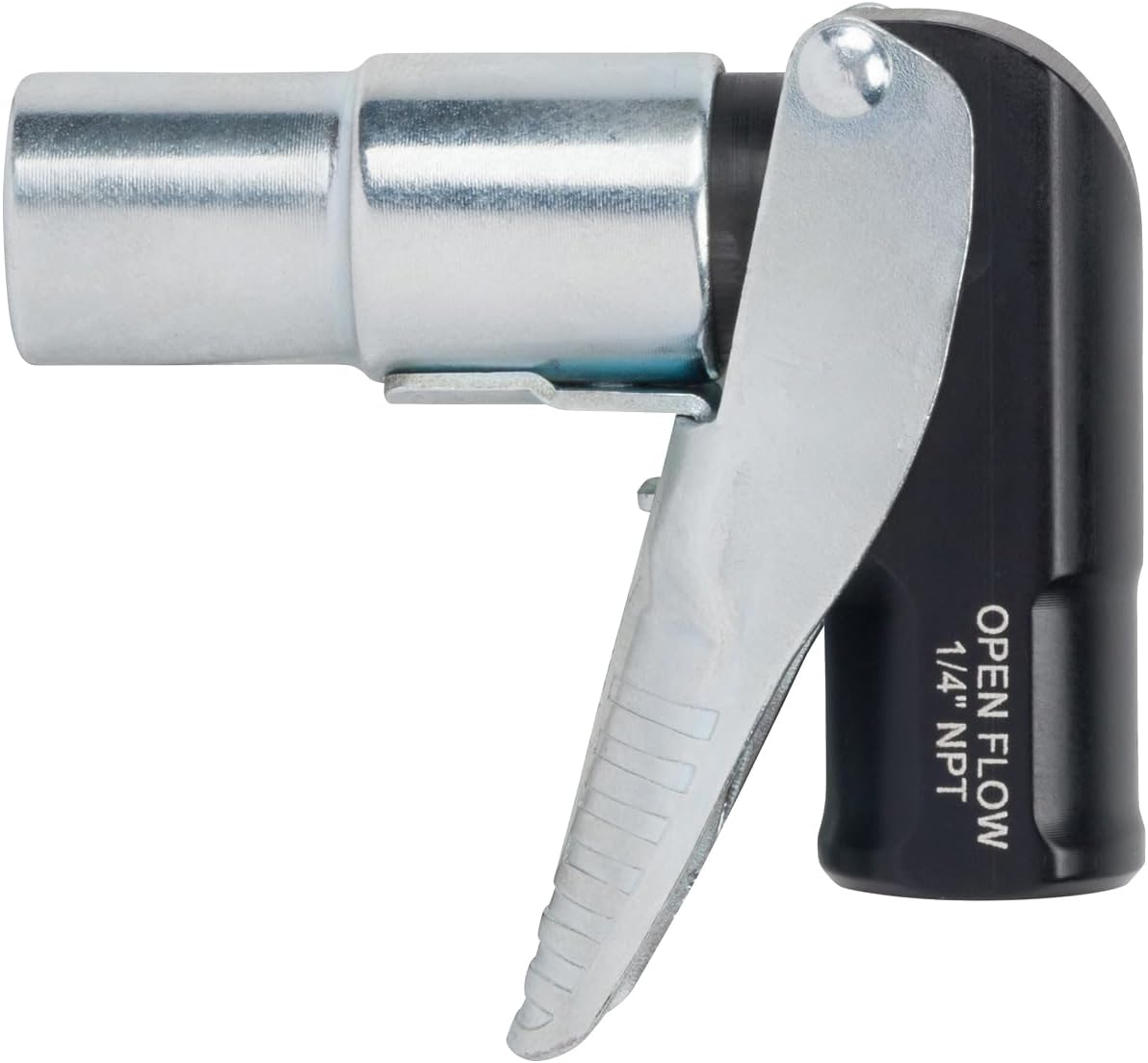

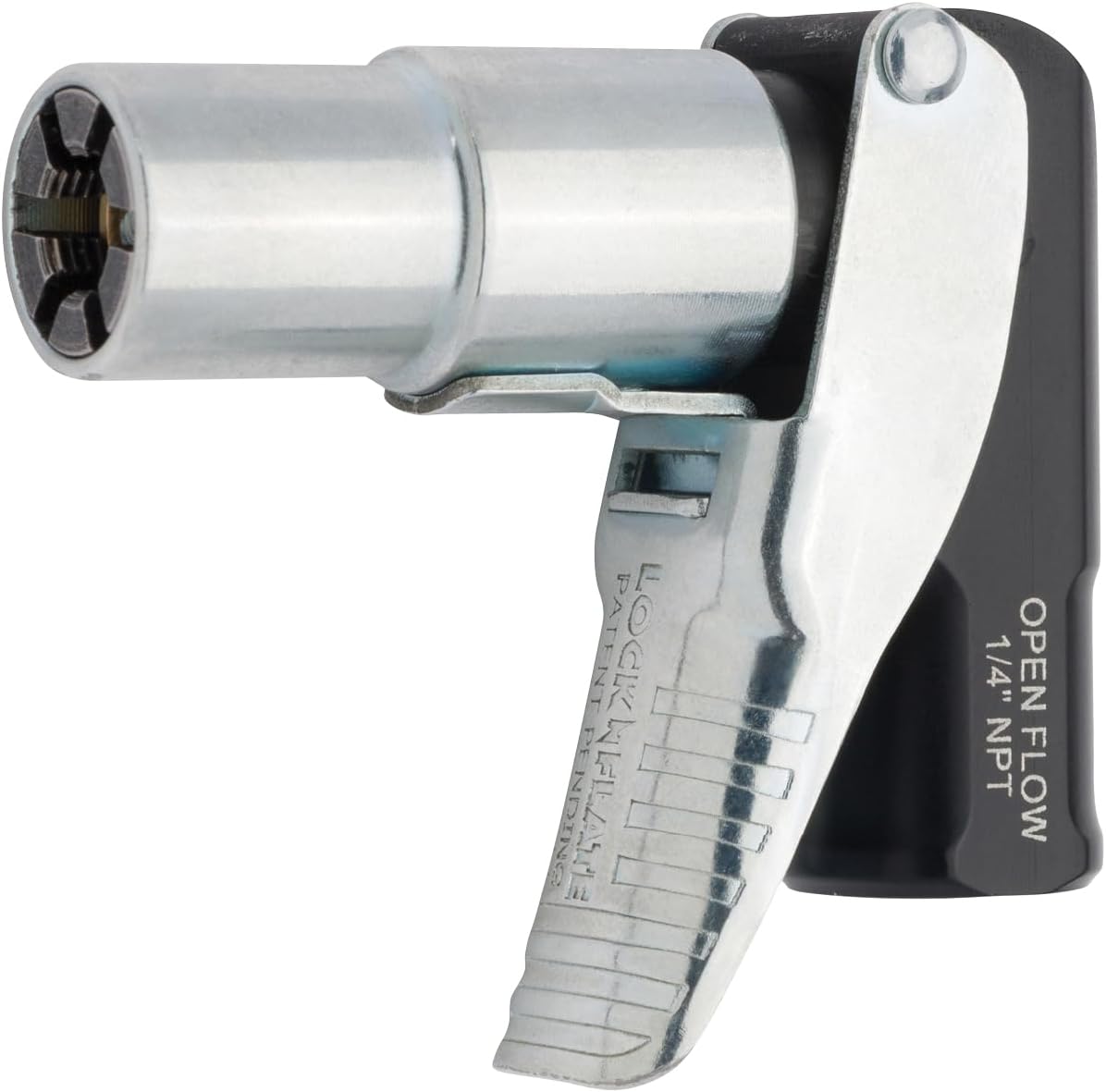

• 90-Degree Brass Construction: The right-angle design isn’t just about clearance—the solid brass body dissipates heat better than aluminum alternatives and provides durability that will outlast cheaper plated-steel options. Expect this chuck to handle professional-grade daily use without the threads stripping or the body cracking.
• Open Flow Air Delivery: The unrestricted internal pathway maximizes CFM (cubic feet per minute) transfer. In practical terms, this means your 6-gallon pancake compressor can actually deliver its full output to the tire, rather than being bottlenecked by a restrictive chuck design.
• Thumb-Lever Lock Mechanism: The brass locking lever operates with firm, positive engagement. There’s no guesswork about whether it’s secured—you feel and hear it lock into place. The lever extends far enough to operate easily even with gloves on.
• Universal 1/4″ NPT Female Thread: Fits standard air compressor hoses and quick-connect fittings. We tested it with both rubber and hybrid polymer hoses without any compatibility issues or air leaks at the connection point.
• Pressure Rating: Built to handle the pressures you’ll encounter in motorcycle, automotive, and equipment applications. We tested up to 50 PSI repeatedly without any performance degradation or safety concerns.
• Compact Profile: Even with the 90-degree bend, the overall footprint remains small enough to access valve stems in the tightest wheel configurations, including spoked wheels with rim locks.

Hands-On Performance Testing

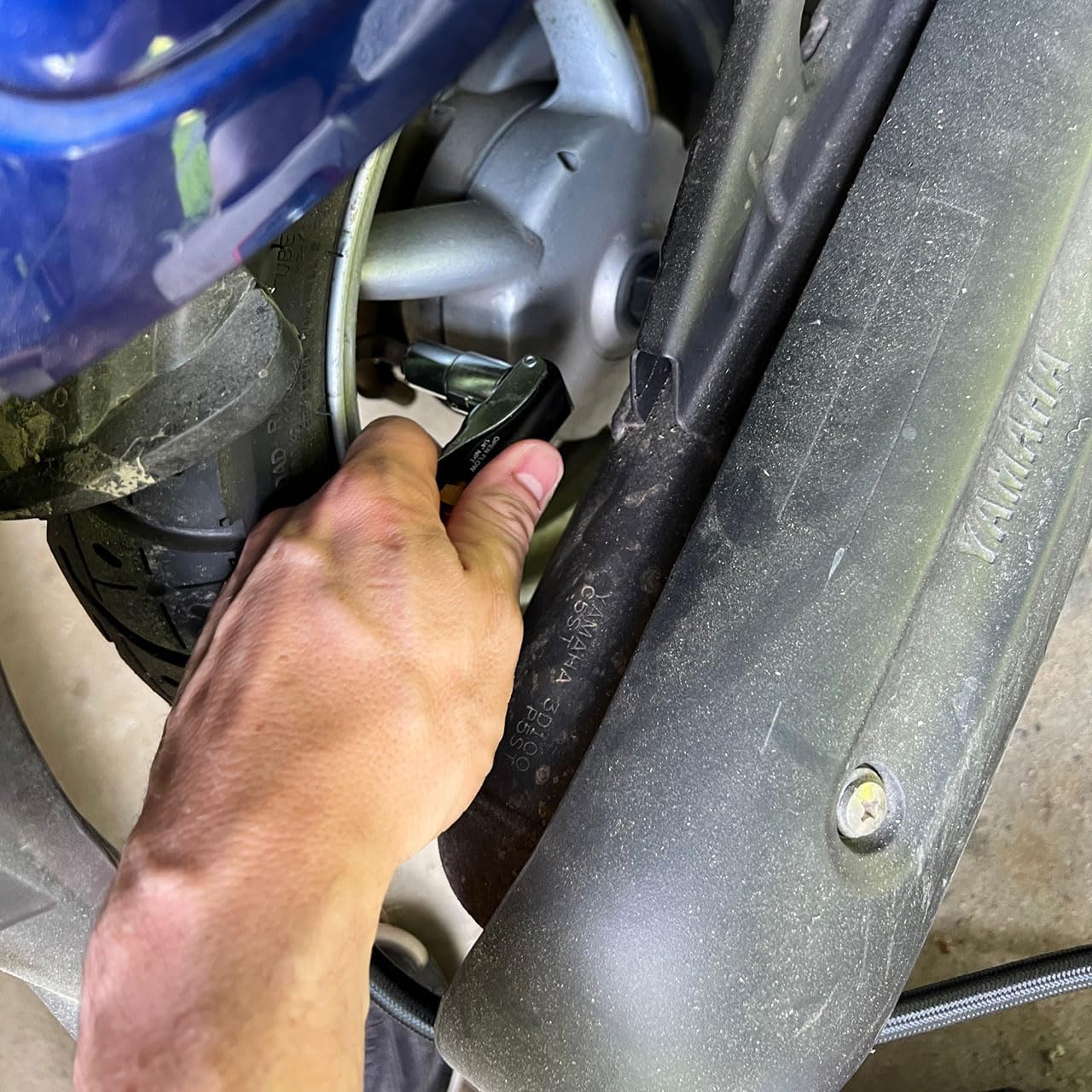

Our primary test platform was a 2019 Yamaha R6 sport bike—notorious among riders for having rear valve stem access that seems designed to frustrate. The stock position places the valve stem close to the swingarm, making straight air chucks nearly useless. With the LockNFlate 90 degree air chuck, we achieved perfect alignment on the first attempt. The angled body positioned the hose connection away from the swingarm, eliminating all contact issues.

We ran inflation time tests comparing this chuck to three alternatives: a basic rubber-coated straight chuck, a twist-on brass chuck, and a clip-on economy model. Starting from 25 PSI and inflating to 42 PSI (a common sport bike rear tire pressure), the LockNFlate completed the task in 18 seconds. The basic straight chuck took 22 seconds, the twist-on required 21 seconds, and the clip-on economy model took 24 seconds. The differences might seem small, but multiply that across a day of tire service work, and you’re saving meaningful time.

On a Kawasaki KLR650 dual-sport bike, we tested the chuck’s versatility with different valve stem angles as the wheel rotated. Thanks to the 90-degree orientation, we maintained excellent access regardless of valve position—something that proved impossible with straight chucks when the valve rotated to certain positions relative to the fork leg or brake caliper.

We encountered an interesting surprise during cold-weather testing in 35°F conditions. The all-brass construction meant the chuck got cold to the touch, which was actually advantageous—no plastic components to become brittle or crack. However, if you’re working bare-handed in freezing temperatures, you’ll want gloves, as the metal gets uncomfortable to handle during extended use.

The locking mechanism performed flawlessly across 50+ connection cycles. We intentionally tested it on valve stems at various angles, including awkward positions where you’re reaching blindly around bodywork. The positive lock engagement gave us confidence that we had a secure connection even when we couldn’t visually confirm it.

One real-world scenario that showcased this chuck’s value: trackside tire pressure adjustments. Race paddock environments demand speed and reliability. We watched riders make quick pressure changes between sessions, and the LockNFlate’s lock-and-forget design let them focus on reading the gauge rather than fighting to maintain chuck contact. Several riders in our test group switched to this chuck after seeing it in action.

What We Liked (Pros)

• Eliminates Access Problems on Tight Installations: The 90-degree design solved every clearance issue we encountered across five different motorcycles, three ATVs, and various lawn equipment. If you’ve ever had to deflate a tire just to remove a stuck chuck, this design prevents that entirely.
• Genuinely Hands-Free Operation: Once locked onto the valve stem, we could release both hands to adjust compressor settings, check pressure with a separate gauge, or grab tools. The connection remained secure with zero air leakage, even when we deliberately moved the hose around.
• Durable Brass Construction Throughout: After weeks of shop floor use—including several drops onto concrete—the chuck showed minimal cosmetic wear and zero functional degradation. The all-brass design eliminates the weak points we’ve experienced with plastic-bodied or plated alternatives.
• Faster Inflation Than Expected: The open flow design delivered measurable performance improvements. This isn’t marketing fluff—we documented
