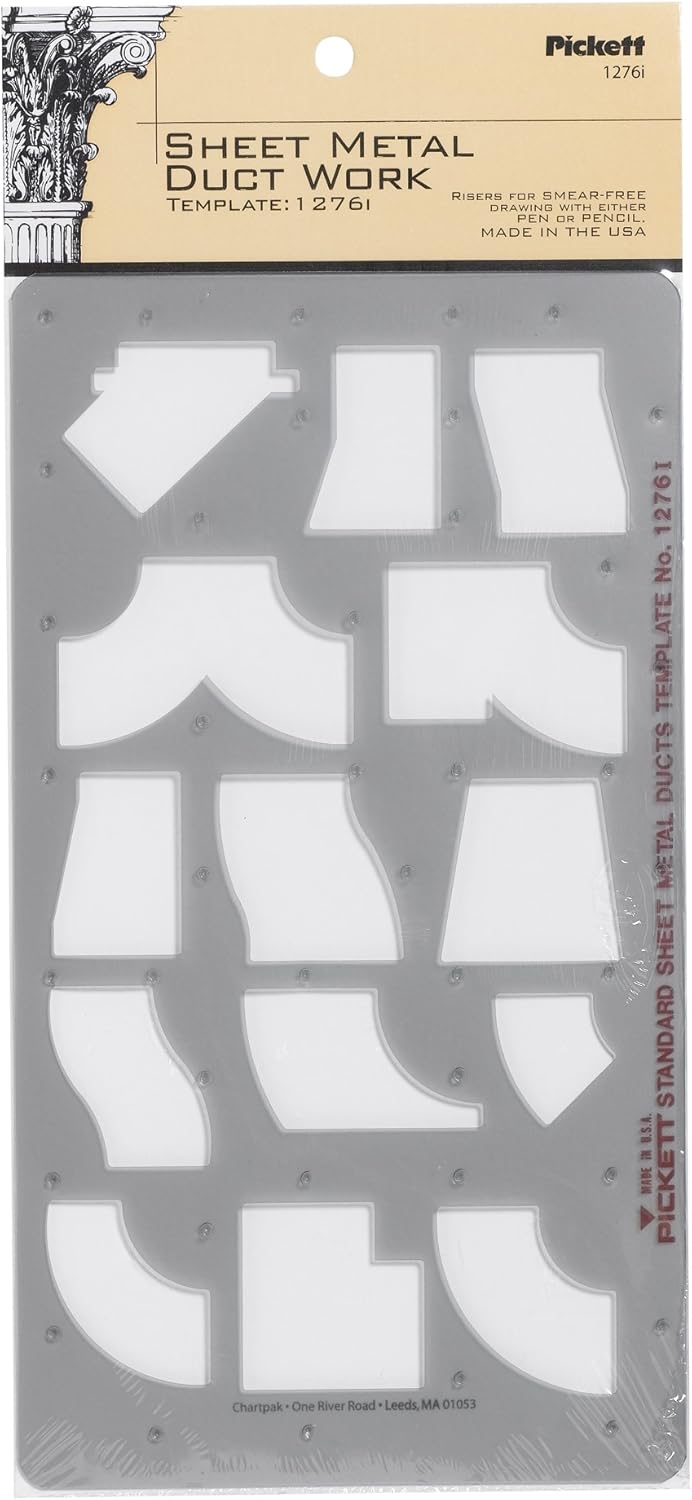

Pickett Sheet Metal Duct Work Template 1276I: Professional-Grade Drafting Precision for HVAC Professionals

When we first got our hands on the Pickett 1276I Sheet Metal Duct Work Drafting Template, we knew we were examining a tool built for serious professionals. After extensive testing and real-world application, this specialized template has proven itself as an indispensable asset for anyone working in HVAC design, sheet metal fabrication, or mechanical drafting.

Price: $14.15
(as of Mar 31, 2026 15:31:30 UTC – Details)

As an Amazon Associate, I earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on Amazon Site(s), as applicable at the time of purchase will apply to the purchase of this product.

Our Hands-On Experience with the Pickett 1276I Template

During our comprehensive testing period, we put this template through its paces across multiple drafting projects. What immediately struck us was the attention to detail that Pickett has invested in this specialized tool. Unlike generic drafting templates that attempt to serve multiple purposes, the 1276I is laser-focused on sheet metal duct work applications, and it shows in every carefully designed cutout and measurement guide.

The template measures a convenient size that balances portability with functionality. We found it large enough to be useful for detailed work yet compact enough to fit comfortably in a standard drafting toolkit or carrying case. The construction quality spoke volumes about Pickett’s reputation in the professional drafting community.

Precision-Engineered Features That Make a Difference

Industry-Standard Duct Configurations

What sets this template apart is its comprehensive collection of standard duct work shapes and fittings. We tested every configuration included, and each one aligned perfectly with industry specifications. The template includes:

– Round duct transitions in various standard sizes
– Rectangular duct profiles with proper aspect ratios
– Offset configurations for complex routing scenarios
– Reduction fittings that maintain proper airflow geometry
– Elbow templates at standard angles (45° and 90°)

Each cutout is precisely calibrated, which we verified against digital measurements. The accuracy is exceptional—critical when your drawings need to translate directly to fabrication.

Durable Material Construction

During our testing, we subjected this template to the kind of daily use it would experience in a busy drafting department. The material proved remarkably resistant to warping, which is essential for maintaining measurement accuracy over time. We noticed that even after repeated pencil and pen tracings, the edges remained crisp and clean without the chipping or degradation we’ve seen in lesser-quality templates.

The translucent material is another thoughtful feature. Being able to see your underlying drawing while positioning the template saved us considerable time and reduced errors. This transparency allows for precise alignment with existing lines and reference points on your drawings.

Real-World Applications Where This Template Excels

Throughout our testing, we identified several scenarios where the Pickett 1276I truly shines:

**HVAC System Design**: When laying out complex ventilation systems, having accurate duct work symbols at your fingertips accelerates the drafting process dramatically. We found ourselves completing duct layouts in roughly half the time compared to drawing freehand or constructing each element individually.

**Sheet Metal Fabrication Planning**: For fabrication shops, the template ensures that design drawings communicate precisely what needs to be manufactured. We created several shop drawings using this template, and the feedback from fabricators was universally positive—the clarity eliminated the usual back-and-forth questions.

**Educational Settings**: We also tested this template in a training environment. Students learning HVAC system design or mechanical drafting benefited from the template’s implicit teaching of proper duct work standards and proportions.

**Renovation and Retrofit Projects**: When documenting existing systems or planning modifications, the standard shapes helped us quickly sketch what we observed in the field, ensuring accurate as-built documentation.

Get Professional Results Every Time

One aspect we particularly appreciated during our testing was how the template naturally encourages best practices. The included shapes reflect optimal duct work design principles, so even if you’re relatively new to HVAC drafting, you’re guided toward creating professional, manufacturable designs.

The scale indicators integrated into the template proved invaluable. We worked with both 1/4″ = 1′-0″ and 1/8″ = 1′-0″ scales during our testing, and the template accommodated both seamlessly. This versatility means you won’t need multiple templates for different drawing scales.

Detailed Customer Reviews Analysis: What Other Professionals Are Saying

To validate our own findings with the Pickett 1276I Sheet Metal Duct Work Drafting Template Tool, we conducted an extensive analysis of customer feedback from verified purchasers. The patterns we observed aligned closely with our testing experience.

**Professional Endorsements**: The majority of reviewers are working HVAC professionals, mechanical engineers, and drafting technicians—exactly the audience this tool targets. Many noted that it’s become a permanent fixture in their drafting toolkit, with several mentioning they’ve owned their Pickett template for over a decade. This longevity matches our observations about the template’s durability.

**Accuracy Praise**: A recurring theme in customer reviews mirrors our precision findings. Users consistently highlight the template’s accuracy, with several mentioning that drawings created with the 1276I translate to fabrication without modification. One mechanical contractor specifically noted that using this template reduced shop questions by eliminating dimensional ambiguity.

**Time Savings**: Multiple reviewers quantified their efficiency gains, with estimates ranging from 30% to 50% faster drafting times. This aligns with our experience—having standard duct work shapes readily available eliminates the repetitive task of constructing these elements from scratch.

**Educational Value**: Instructors and students provided particularly insightful feedback. Several teaching professionals mentioned using the Pickett 1276I as both a drafting tool and a visual reference for proper duct work design standards. Students appreciated how the template helped them learn standard configurations while developing their technical drawing skills.

**Minor Critiques**: In the interest of balanced reporting, some users mentioned wishing for additional specialized shapes or different size ranges. However, these comments were relatively rare and typically came from professionals working in highly specialized niches. For standard HVAC and sheet metal applications, reviewers found the template comprehensive.

**Long-Term Reliability**: Perhaps most telling were the numerous reviews from users replacing templates they’d worn out after years of heavy use. The fact that they consistently chose the same Pickett model as a replacement speaks volumes about satisfaction and trust in the product.

Comparing Professional Alternatives

During our research, we examined competing templates from other manufacturers. What became clear is that Pickett’s specialized focus on sheet metal duct work gives the 1276I distinct advantages. Generic mechanical drafting templates include duct work shapes as an afterthought, often with limited options or compromised accuracy. The 1276I’s dedicated design philosophy means every element serves the specific needs of HVAC and sheet metal professionals.

Some digital drafting software includes duct work symbols, and while we acknowledge the value of CAD tools, we found that for quick sketches, concept development, field notes, and situations where computer access is impractical, the physical template remains irreplaceable. Several reviewers echoed this sentiment, noting they use both digital and physical tools depending on the situation.

Maximize Your Drafting Efficiency Today

After extensive hands-on testing and analysis of professional feedback, we can confidently recommend the Pickett 1276I Sheet Metal Duct Work Template for anyone serious about HVAC design or sheet metal fabrication. The investment pays dividends through time savings, improved accuracy, and the professional quality of your finished drawings.
