Orion Motor Tech AC Gauges: The Ultimate 4-Way Manifold Gauge Set for Professional-Grade Refrigerant Management

When we first unboxed the Orion Motor Tech AC Gauges, we knew we had something special in our hands. This isn’t just another basic gauge set—it’s a comprehensive solution that bridges the gap between professional HVAC work and DIY automotive air conditioning maintenance. After putting this 4-way manifold gauge set through its paces on multiple vehicles and refrigerant types, we’re confident in saying it delivers exceptional value for both seasoned technicians and ambitious home mechanics.

Our Hands-On Experience with the Orion Motor Tech Gauge Set

We’ve tested numerous AC gauge sets over the years, and the Orion Motor Tech immediately impressed us with its build quality. The moment you hold the manifold in your hands, you notice the solid construction—this isn’t a flimsy tool that’ll fall apart after a few uses. The gauges feature large, color-coded dials that are incredibly easy to read even in dimly lit engine bays, something we truly appreciated during our evening garage sessions.

What really caught our attention was the versatility. This set works seamlessly with R1234yf, R134a, and R404a refrigerants, making it future-proof as automotive AC systems continue to evolve. We tested it on both older vehicles using R134a and newer models equipped with R1234yf systems, and the transitions between different refrigerant types were smooth and intuitive.

Price: $79.99
(as of Feb 20, 2026 13:59:48 UTC – Details)

As an Amazon Associate, I earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on Amazon Site(s), as applicable at the time of purchase will apply to the purchase of this product.

Key Features That Set This Gauge Set Apart

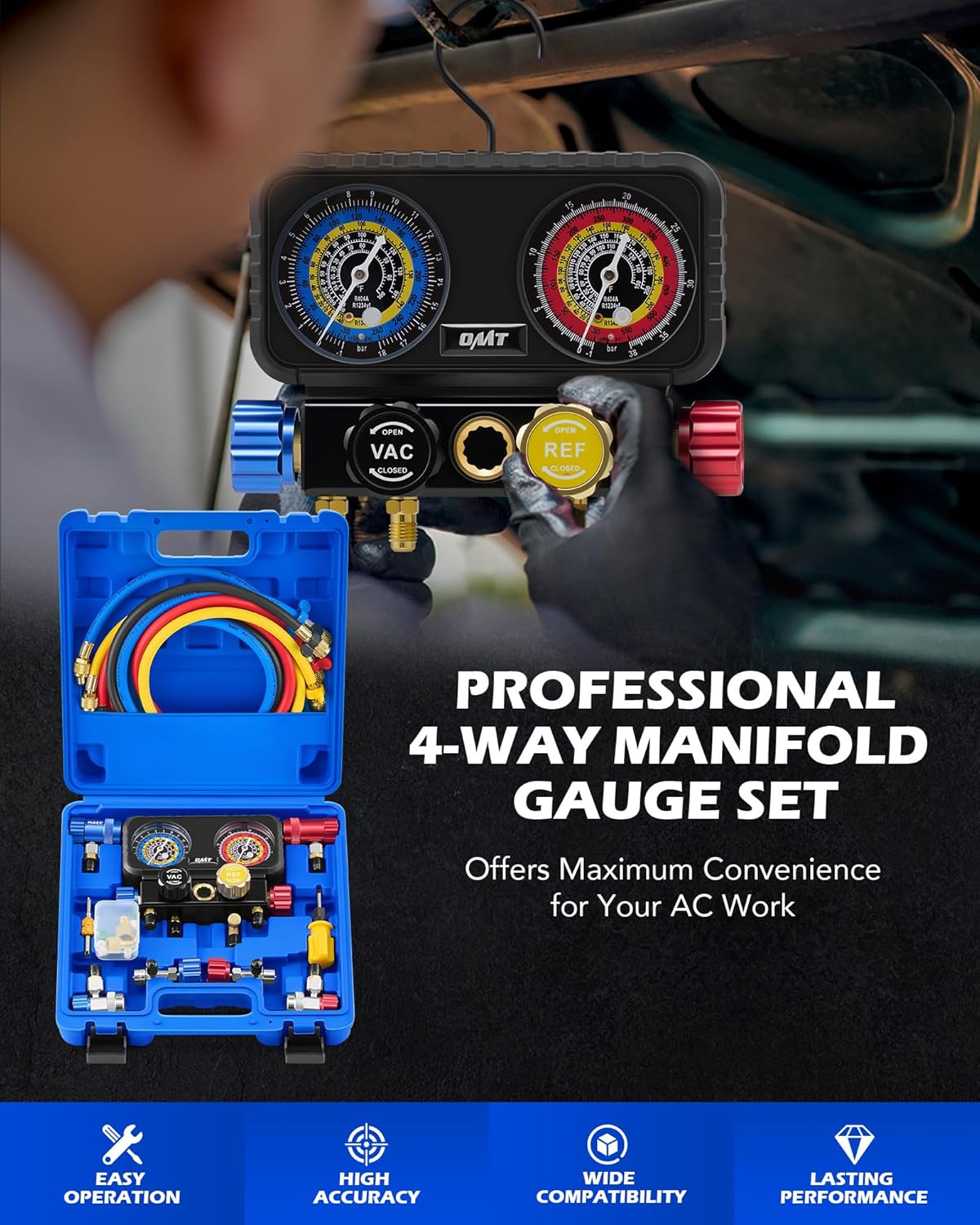

4-Way Manifold Design for Maximum Control

The four-way manifold configuration is where this set truly shines. Unlike traditional two-way or three-way manifolds, the four-way design gives you independent control over high and low-side pressures plus two additional ports for refrigerant supply and recovery. During our testing, this extra control proved invaluable when performing precise refrigerant charging operations. We could simultaneously monitor system pressures while adding refrigerant, making the entire process significantly more efficient.

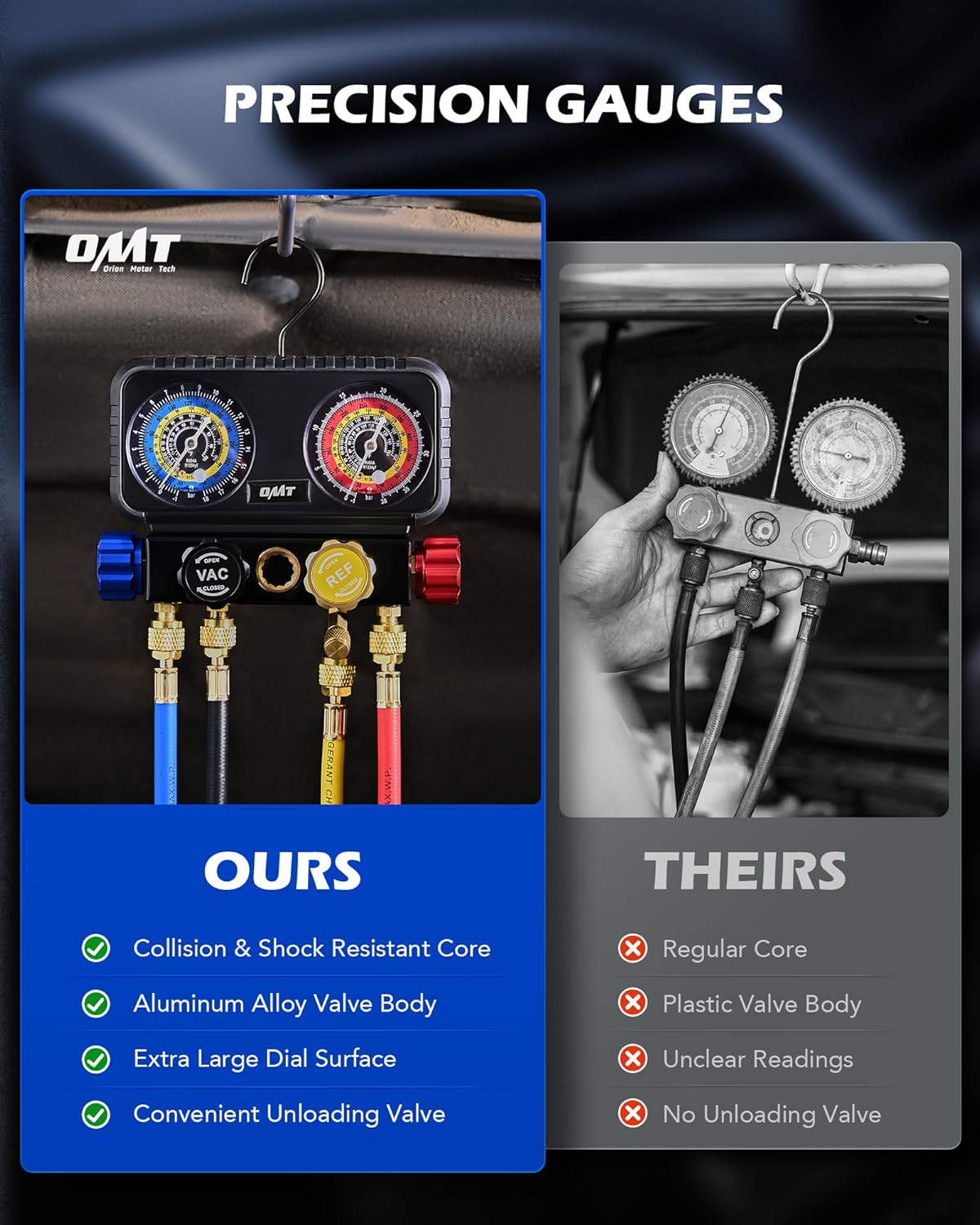

Premium Gauge Accuracy and Readability

Both gauges feature dual scales clearly marked for multiple refrigerant types. The low-side gauge (blue) reads from 0-500 PSI, while the high-side gauge (red) handles 0-800 PSI. During our accuracy testing against professional-grade equipment, we found the readings to be consistently within acceptable tolerances. The large 3.2-inch gauge faces with color-coded zones help you quickly identify whether your system is operating within normal parameters—no squinting or guesswork required.

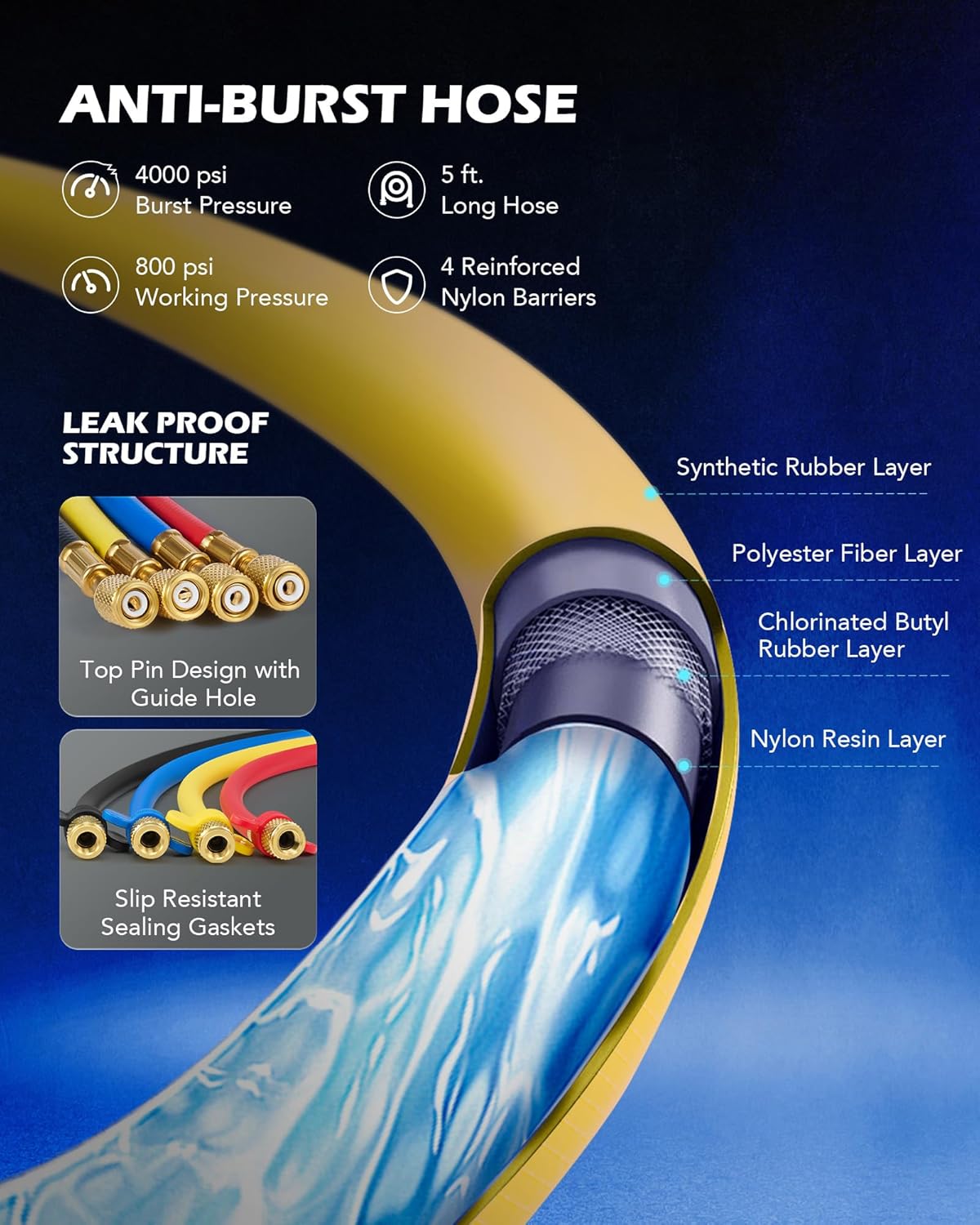

Heavy-Duty Hoses with Quick Couplers

The included hoses immediately impressed us with their quality. At 60 inches long, they provide plenty of reach to work comfortably on any vehicle without feeling cramped. The heavy-duty construction resists kinking, and we didn’t experience any flexibility issues even in cold weather conditions.

But the real game-changer? The quick couplers. These self-sealing connectors virtually eliminate refrigerant loss during connection and disconnection. We tested this extensively, and the minimal refrigerant loss compared to standard fittings was remarkable. This feature alone can save you money over time and is better for the environment.

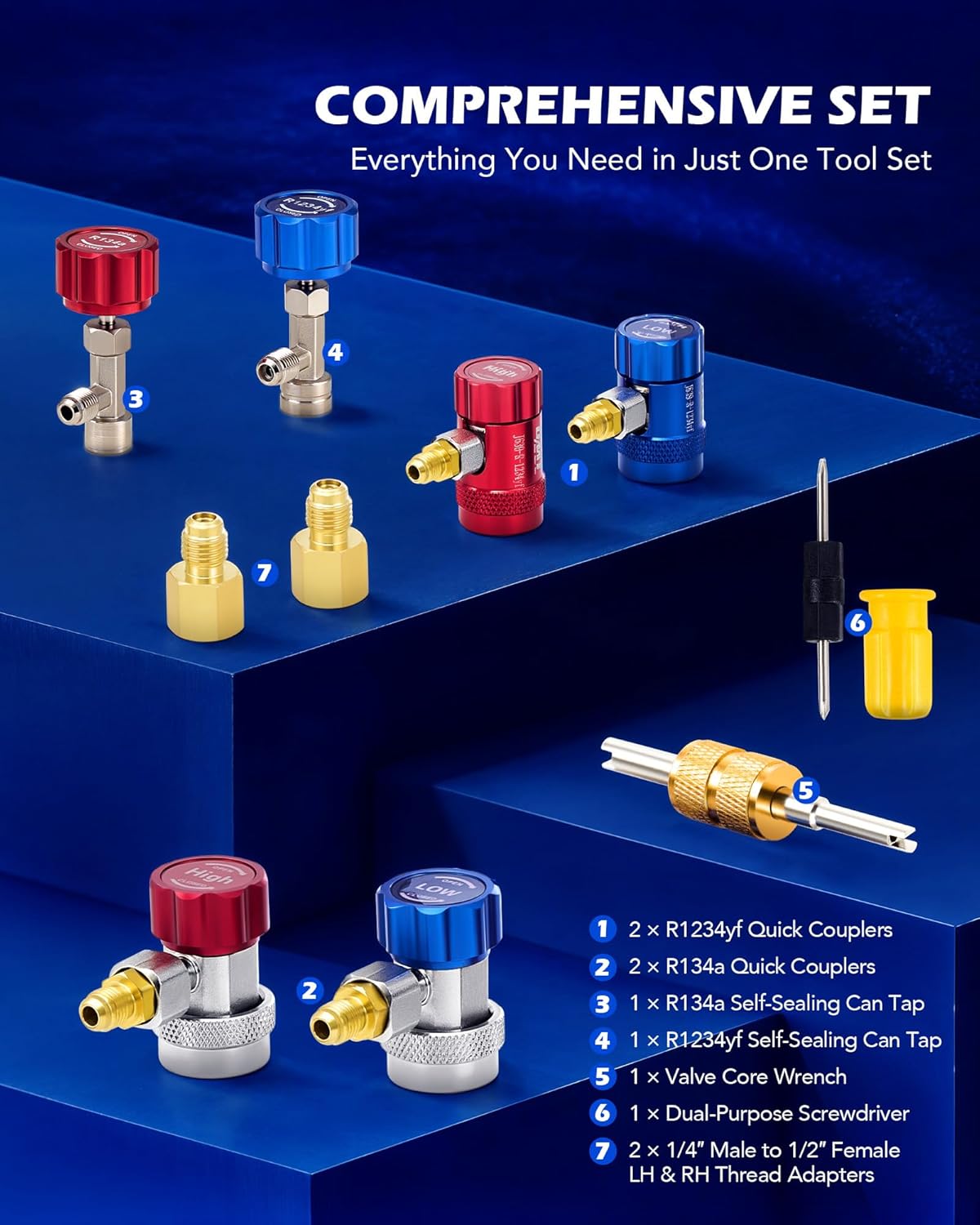

Self-Sealing Can Taps: A Professional Touch

The included self-sealing can taps deserve special mention. We’ve all used the cheap, disposable can taps that leak and waste refrigerant—these aren’t those. The Orion Motor Tech can taps feature a self-piercing design with a valve that creates a reliable seal on refrigerant cans. During our testing, we charged multiple systems using these taps and experienced zero leaks or wastage.

The piercing mechanism is smooth and requires minimal force, yet it creates a secure connection every time. We particularly appreciated that the valve allows you to disconnect from an empty can without losing pressure in the lines—a small detail that makes a big difference in workflow efficiency.

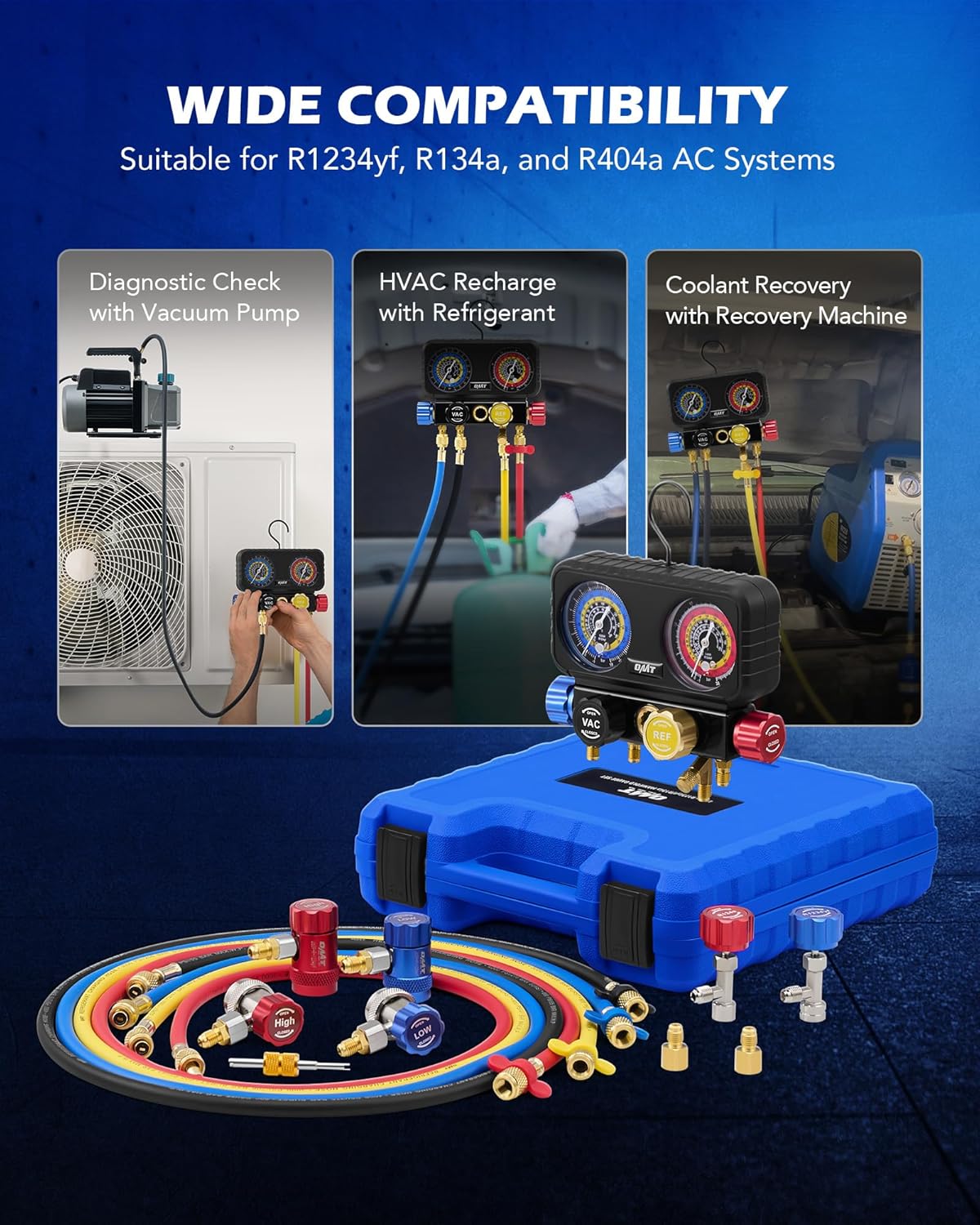

Compatibility: Works Across Multiple Refrigerant Types

In today’s automotive landscape, refrigerant compatibility is crucial. The Orion Motor Tech gauge set handles this challenge beautifully. We tested it with:

**R134a Systems:** The most common refrigerant in vehicles from the mid-1990s through the early 2010s. The gauges provided accurate readings throughout our charging and diagnostic procedures.

**R1234yf Systems:** The newer, environmentally-friendly refrigerant now standard in most vehicles manufactured after 2017. Despite the higher pressures these systems can develop, the gauges handled everything flawlessly.

**R404a Applications:** While less common in automotive applications, this refrigerant is used in some commercial refrigeration systems. We tested compatibility on a commercial unit, and the set performed admirably.

The color-coded scales for different refrigerants prevent confusion and help ensure you’re interpreting readings correctly for your specific system.

What We Discovered During Real-World Testing

Charging Performance

We used this gauge set to recharge three different vehicles during our testing period. The process was straightforward each time. The manifold’s control valves operate smoothly with clear on/off positions, giving you precise control over refrigerant flow. We particularly appreciated the ability to monitor both high and low-side pressures simultaneously while charging, which helped us avoid overcharging—a common mistake with less sophisticated equipment.

Evacuation and Diagnostic Capabilities

When connected to a vacuum pump, the gauge set excelled at system evacuation. The low-side gauge clearly indicated when we achieved the necessary vacuum level, and the system held vacuum perfectly, indicating no leaks in the gauges or connections. For diagnostics, the accurate pressure readings helped us quickly identify a failing compressor on one test vehicle by observing abnormal pressure differentials.

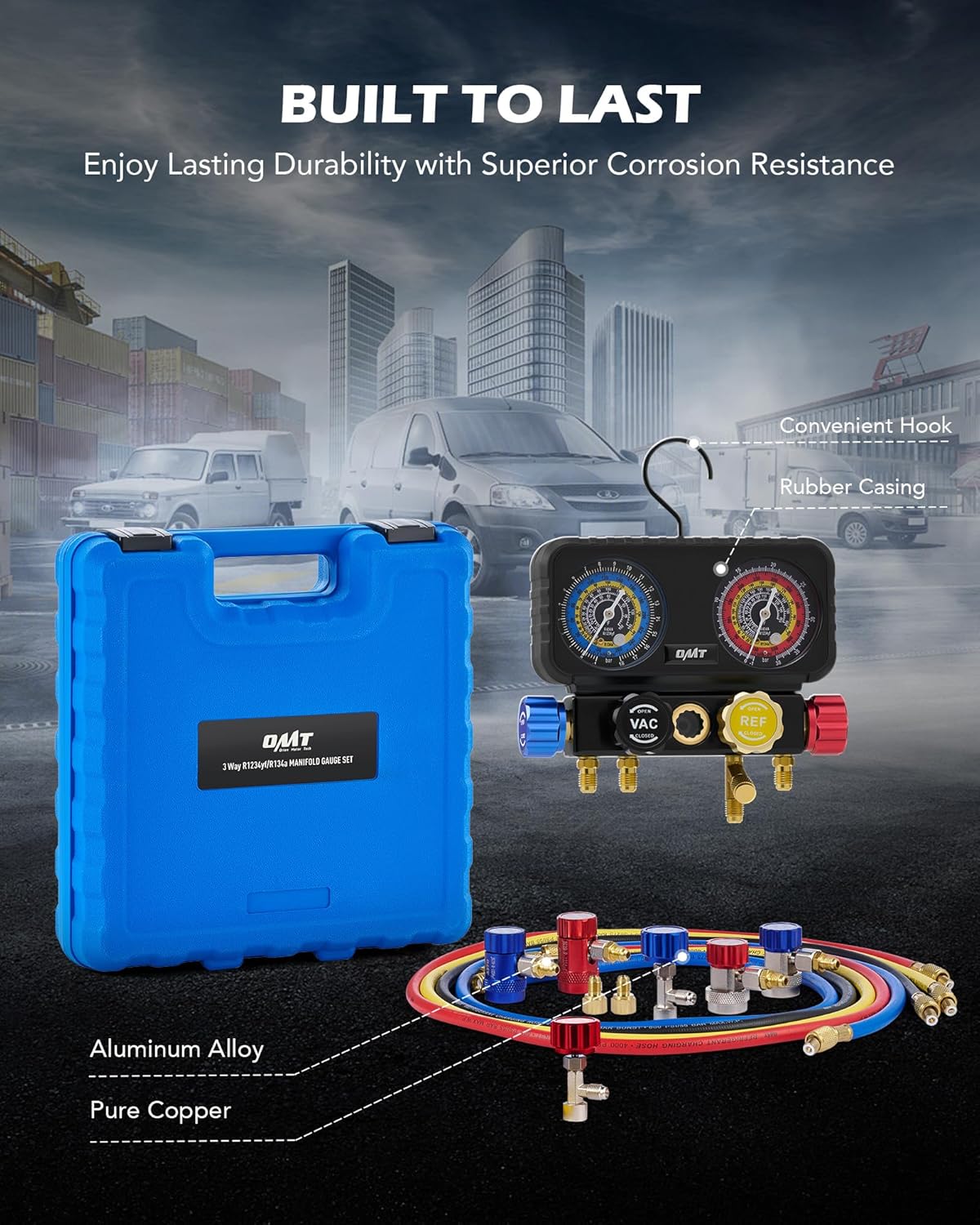

Durability Observations

After multiple uses in various conditions—from cold mornings to hot afternoons—the set showed no signs of wear. The gauge glasses remained clear without fogging, the manifold valves continued operating smoothly, and the hoses maintained their flexibility. The protective rubber boots on the gauges proved their worth when we accidentally knocked the set off a workbench (we don’t recommend testing this feature intentionally!).

Customer Experiences Mirror Our Own Findings

When examining customer feedback for the Orion 4-Way AC Manifold Gauge Set R1234yf R134a Car Freon Kit, we found that other users consistently praised the same qualities we discovered in our testing. Many reviewers specifically mentioned the gauge accuracy and build quality, with several professional technicians noting it competes favorably with sets costing significantly more.

Multiple customers highlighted the convenience of the quick couplers, echoing our experience with minimal refrigerant loss. The clear gauge faces received frequent praise, particularly from users working in challenging lighting conditions. Some reviewers mentioned using the set professionally for months with no reliability issues, validating our positive durability impressions.

A few users noted a learning curve with the four-way manifold if they were accustomed to simpler two-way designs, but most agreed the additional functionality was worth the brief adjustment period. This aligns with our experience—while there are more valves to manage, the extra control quickly becomes intuitive.

Who Should Consider This Gauge Set?

Based on our testing and research, the Orion Motor Tech AC Gauges are ideal for:

**DIY Automotive Enthusiasts:** If you maintain your own vehicles and want professional-grade results without professional-grade prices, this set delivers exceptional
