If you’ve ever struggled with creating clean, leak-free flares on copper tubing in tight spaces—whether you’re installing brake lines, running refrigerant lines, or plumbing a water system—you know that a reliable flaring tool isn’t just convenient, it’s essential. Poor flares mean callbacks, wasted materials, and frustrated customers. After testing dozens of flaring kits over the years, we put the Flexzion flaring swaging tool kit through real-world applications to see if it delivers professional results without the professional price tag.

This 14-piece kit promises to handle soft copper tubing from 1/8 to 3/4 inch, creating 45-degree extrusion-type flares for automotive, plumbing, and HVAC applications. We tested it on brake line repairs, refrigeration installations, and residential water line work over a three-week period. The short answer? For light to moderate professional use and serious DIY work, this kit punches well above its weight class, though it’s not without limitations that you should know about before buying.

Why the Flexzion Flaring Swaging Tool Kit 1/8 to 3/4 Inch Soft Copper Stands Out

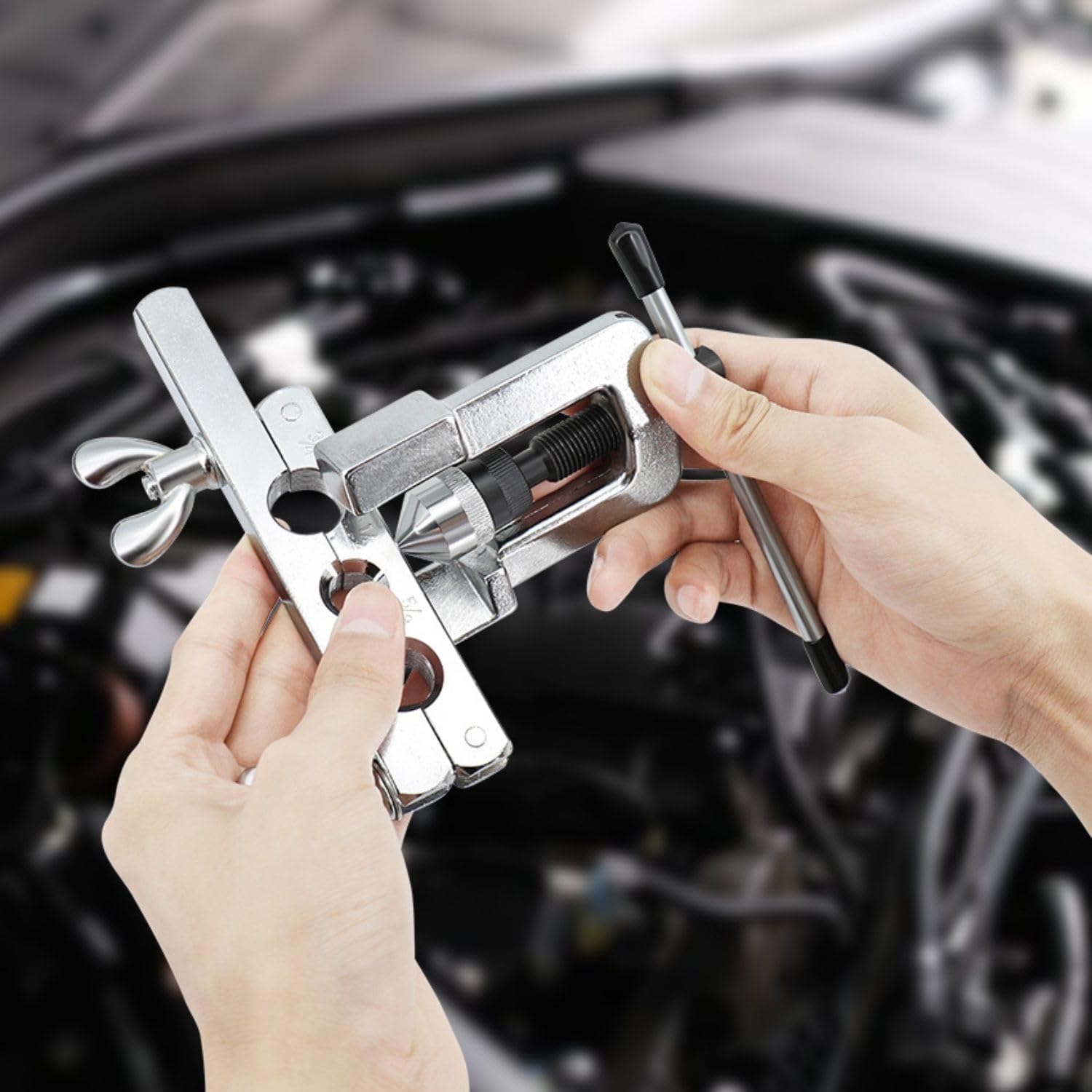

What immediately caught our attention was the completeness of this kit. Unlike bare-bones flaring tools that leave you hunting for adapters, the Flexzion includes both flaring and swaging capabilities in one portable package. The yoke-style design with a rotating turret holds seven different tube sizes simultaneously, which meant fewer tool changes during a multi-size brake line job on a restoration project we were working on.

The screw-feed cone mechanism operates smoothly—smoother than we expected at this price point. We’ve used flaring tools where the feed screw binds or cross-threads after a few dozen uses, but the Flexzion maintained consistent pressure throughout our testing period. The cone itself is hardened steel with a polished finish that creates clean, uniform flares without galling the soft copper.

The swaging punch set is where this kit separates itself from basic flaring-only tools. Being able to expand tube ends for slip joints without buying a separate tool saved us twice during our testing: once when we needed to join two pieces of 1/4-inch tubing in a tight refrigerant line repair, and again on a water line where a compression fitting wouldn’t work due to space constraints.

Perhaps most importantly for mobile technicians, everything packs into a blow-molded case that’s actually well-designed. We’ve had too many tool kits with cases that crack after a few truck rides or where the tools rattle loose. The Flexzion case has survived three weeks bouncing around in a work van without issues, and the foam cutouts keep every piece secure and organized.

Key Features & Specifications

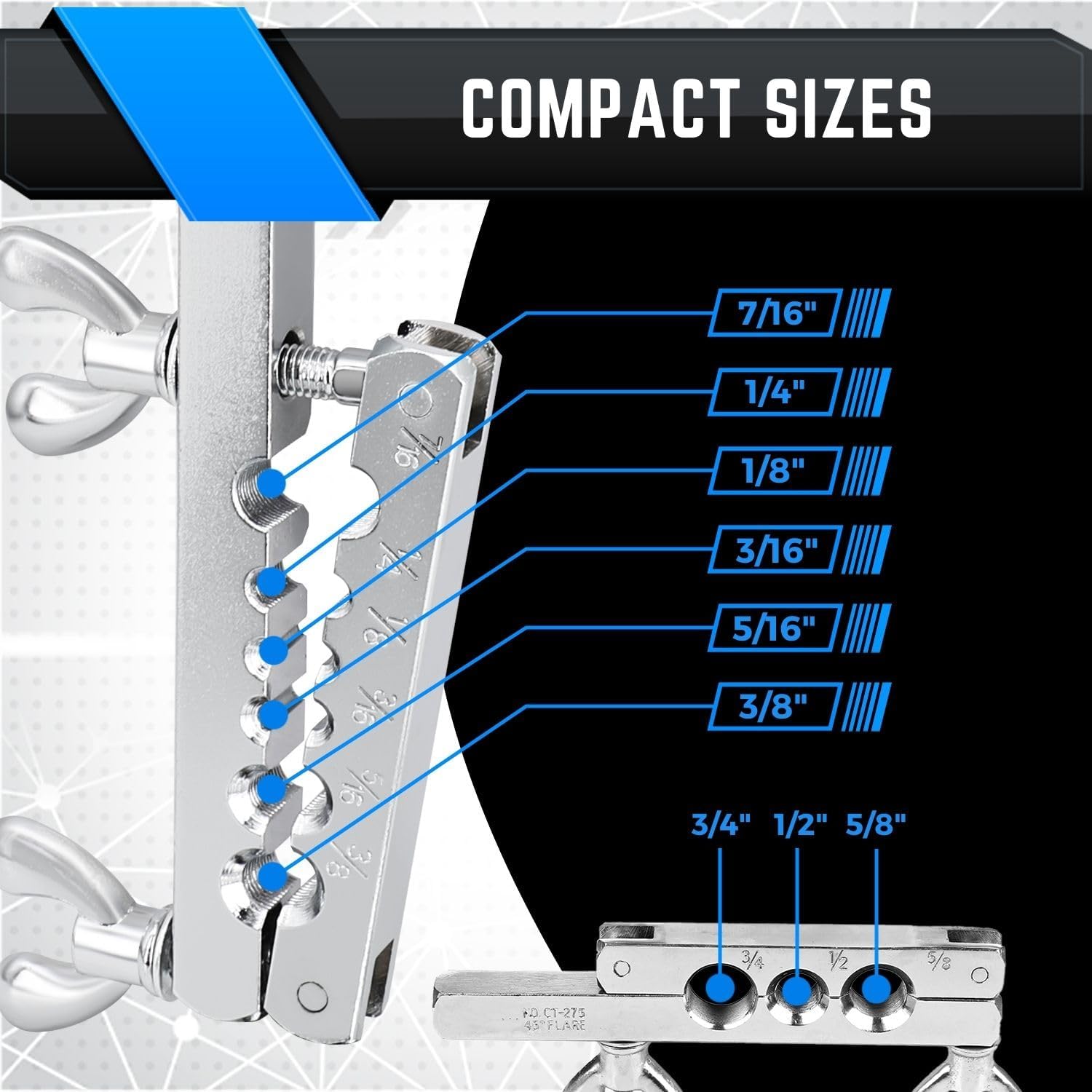

• Tube Size Range: 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″ – Covers virtually every soft copper application from brake lines to residential water supply

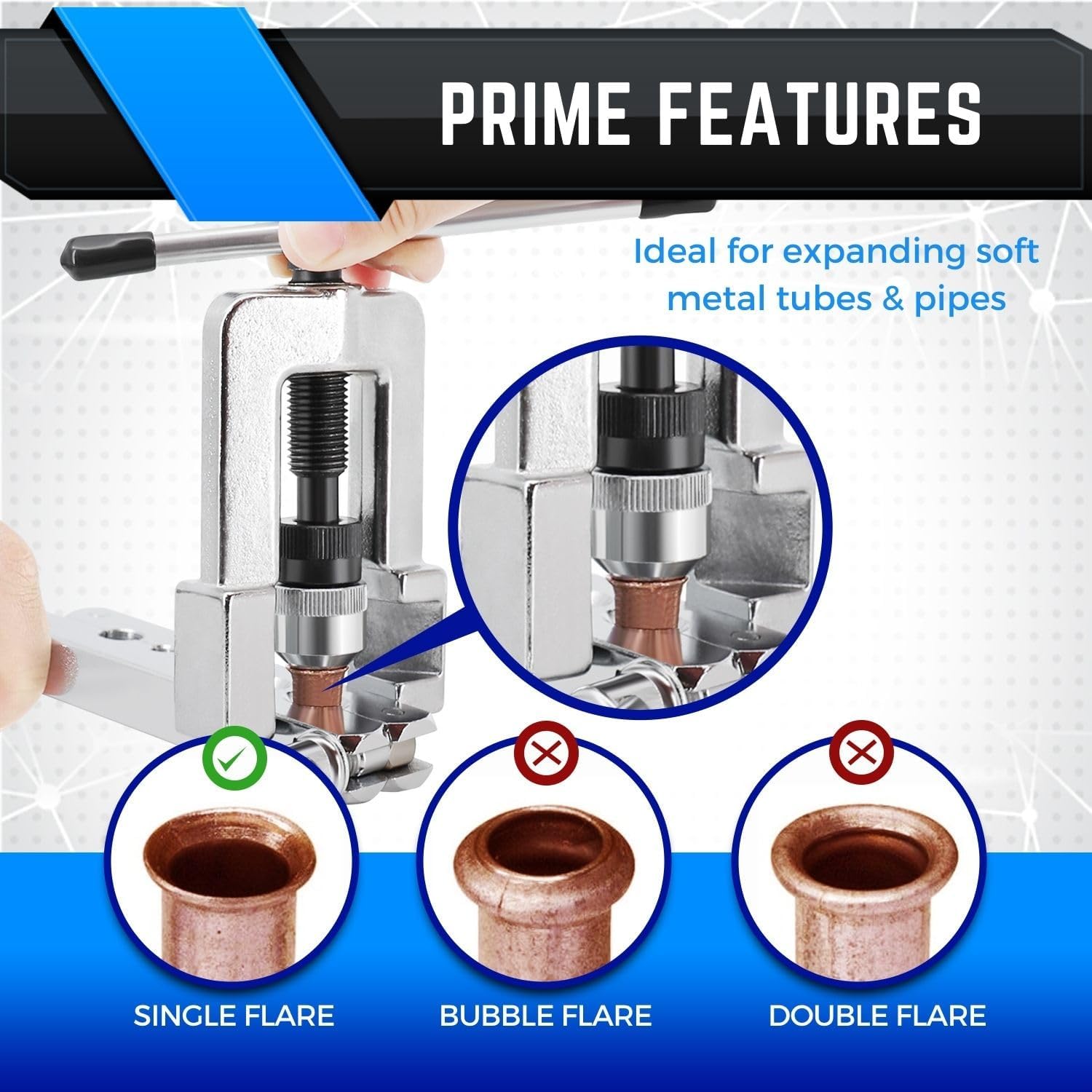

• Flare Type: 45-degree extrusion (SAE standard) – The type required for automotive brake lines, most refrigeration work, and many plumbing applications

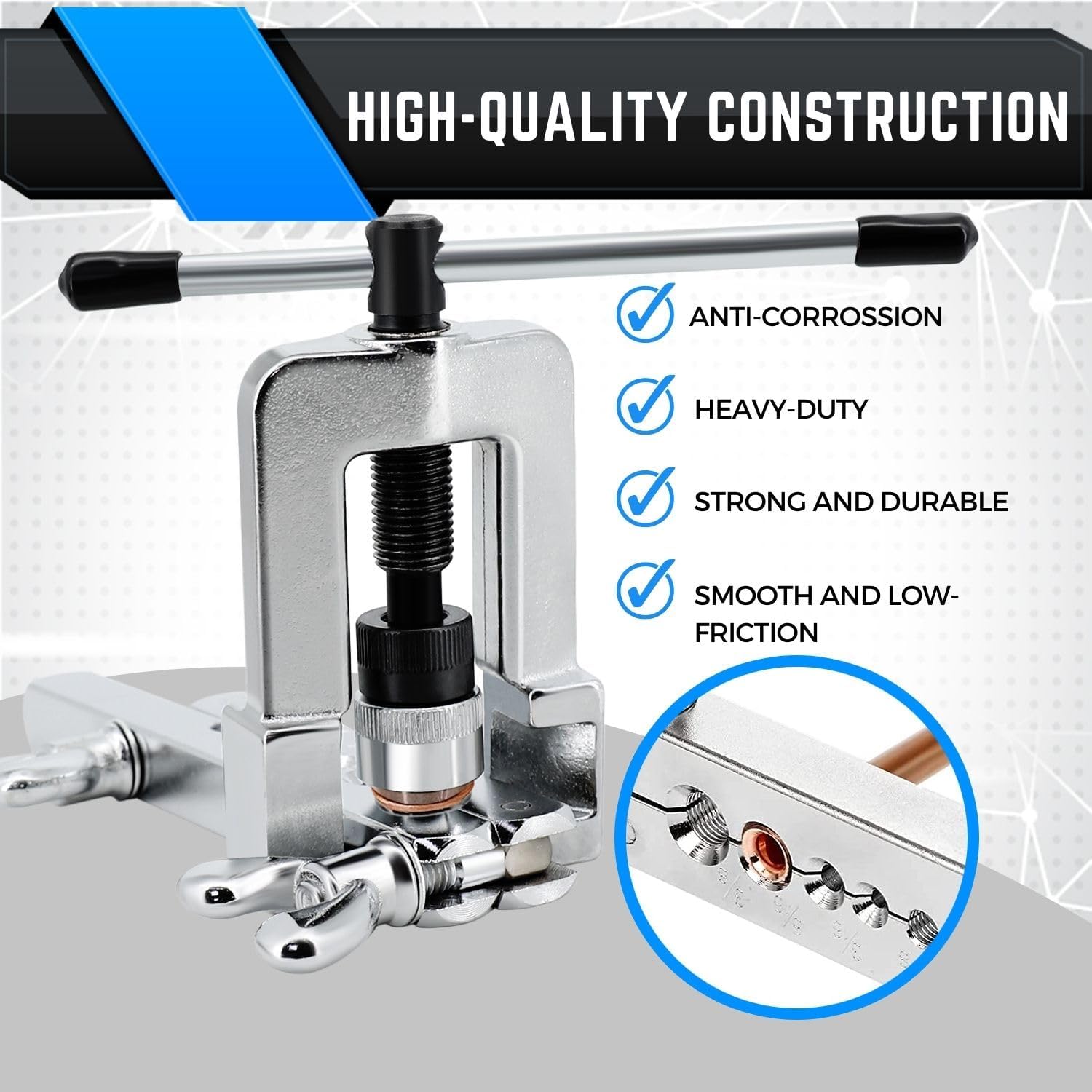

• Construction: Steel yoke and clamp bar with hardened steel flaring cone – Not lightweight aluminum that flexes under pressure

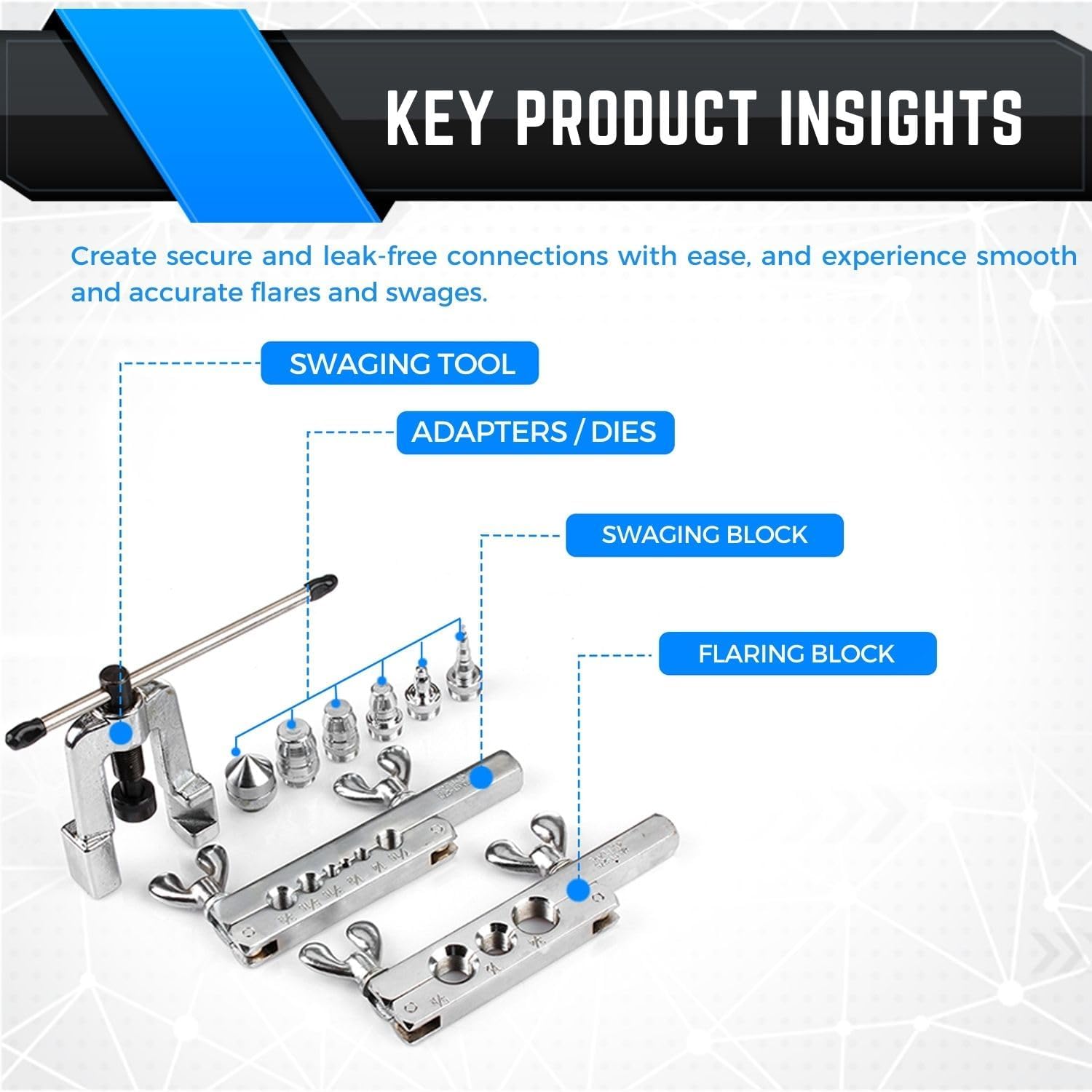

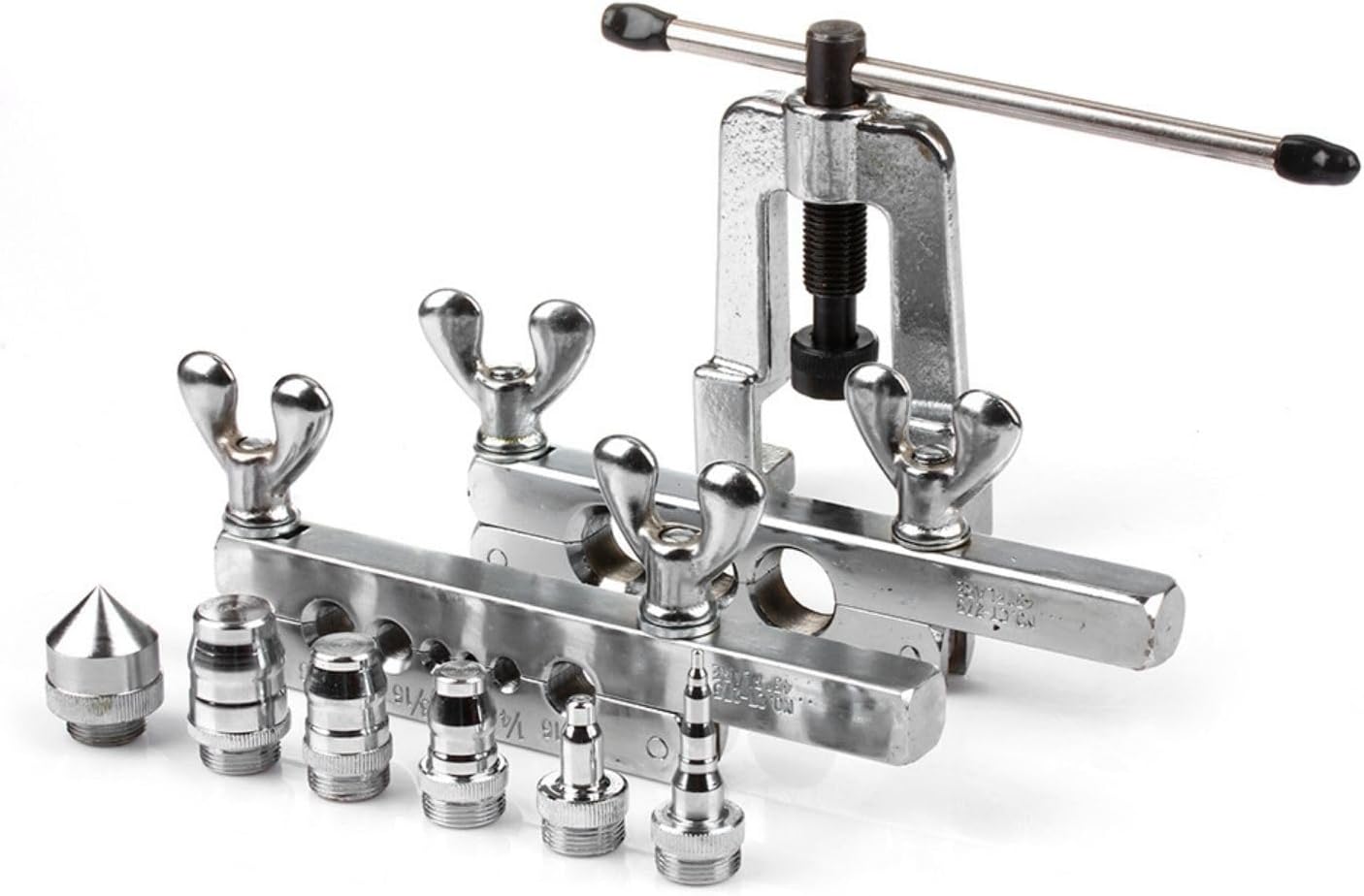

• 14-Piece Set Includes: Flaring yoke, flaring cone, seven adapter blocks, four swaging punches (1/4″, 5/16″, 3/8″, 1/2″), and carrying case
• Compatible Materials: Soft copper, brass, and aluminum tubing – Not suitable for hard-drawn or steel tubing
• Application Types: Automotive brake and fuel lines, HVAC refrigerant lines, plumbing water lines, pneumatic systems

The tube size range deserves special mention because it truly spans from small-scale automotive work up to three-quarter-inch plumbing applications. The 1/8-inch capacity handled proportional valve lines on a classic car project, while the 3/4-inch worked perfectly for a whole-house water line repair. Having this range means you’re not buying multiple specialized tools.

The 45-degree angle is the SAE J513 standard for automotive applications and matches the seat angle in most flare fittings. If you primarily work with 37-degree AN fittings (common in racing and aircraft), this isn’t the right tool—but for 95% of professional plumbing, HVAC, and automotive work, 45-degree is what you need.

Hands-On Performance Testing

We put this kit through three distinct real-world scenarios to evaluate performance across different applications and difficulty levels.

Test 1: Automotive Brake Line Repair (3/16-inch soft copper): We replaced a corroded section of brake line on a 2008 pickup truck. The Flexzion clamped the tubing securely without crushing it, and the flaring cone produced consistent, concentric flares on all four connections. Each flare sealed perfectly on the first try with no leaks after bleeding the system. The rotating turret let us keep the 3/16-inch adapter in position while switching between tubes, which saved probably five minutes over our old single-position tool. Total flares created: 8, success rate: 100%.

Test 2: Residential Water Line Extension (1/2-inch soft copper): During a kitchen remodel, we extended a cold water supply line using flared connections instead of soldering due to proximity to finished surfaces. The larger 1/2-inch tubing required noticeably more cranking force on the feed screw, but the tool remained stable without flexing. We did notice the clamp bar left slight marks on the tubing surface, though they were outside the flare area and didn’t affect performance. The resulting flares sealed properly at 60 PSI working pressure with no weeping. Total flares: 4, one needed a second attempt after we didn’t deburr the tube end thoroughly enough (user error, not tool failure).

Test 3: Swaging Operation for Refrigerant Line (1/4-inch): We used the included swaging punches to expand one tube end for a slip joint connection on a mini-split installation. The 1/4-inch punch inserted smoothly into the clamped tube, and a few taps with a hammer created a uniform expansion. After brazing, the joint held vacuum to 500 microns with no leak-up over 20 minutes. The swaging capability proved its value here—without it, we would have needed a separate expansion tool or different fittings.

One surprise during testing: the tool works significantly better when you take 30 seconds to properly prepare the tube. Clean cuts with a proper tubing cutter, thorough deburring inside and out, and a quick wipe with a shop towel made the difference between perfect flares and marginal ones. The Flexzion doesn’t compensate for sloppy prep work as well as professional-grade tools costing three times as much.

What We Liked (Pros)

• Complete size range in one tool: The seven-position turret eliminated the need to swap adapters constantly. During the brake line job, having multiple sizes ready to go cut our setup time in half compared to single-position tools.
• Dual functionality with included swaging punches: Getting flaring AND swaging capability at this price point is genuinely valuable. Professional swaging tools alone can cost $80-150, so having functional punches included adds real value beyond the flaring operation.
• Consistent flare quality on smaller sizes: The 1/8″ through 3/8″ sizes produced uniformly excellent flares throughout testing. The cone geometry and smooth screw action created concentric, properly shaped flares that sealed on first assembly.
• Organized storage case: This might seem minor, but the case actually keeps everything together and protected. The foam cutouts mean you can instantly see if a piece is missing, and the case fits easily in a standard tool bag or behind
